[CALIBRATION] The instrument has been carefully calibrated before they go out, completely conform to the requirements of the index of the instrument.Calibration of instrument and equipment: Voltmeter： Measuring range above the 0-6000 V AC; Ammeter：Measuring range from 0-15 mA AC above; Load resistance：500 k Ω - 800 k Ω, more than 0.5 WATT

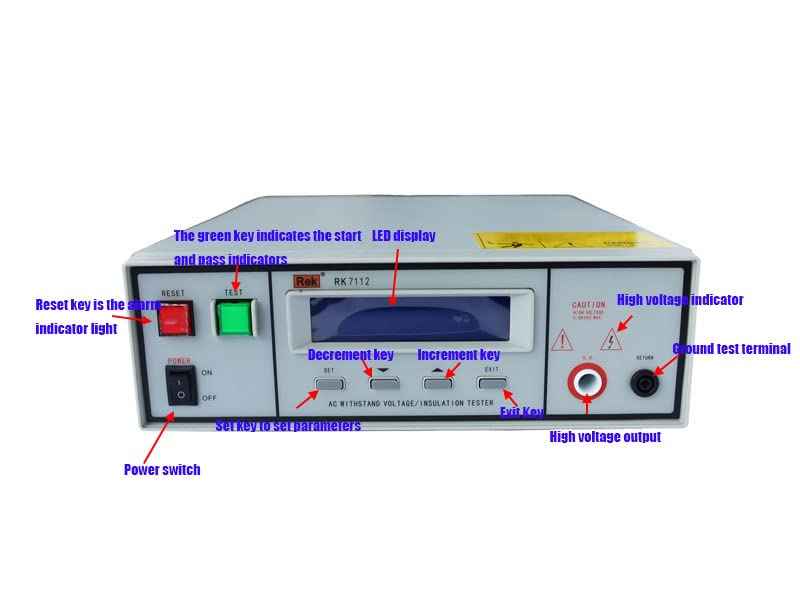

[HIGH QUALITY] The test employs high-brightness LED digital tubes to display the test time, voltage, and current, with real-time visualization of breakdown current and voltage values. The test time is measured using a three-digit display, and the alarm current value can be continuously preset. The output voltage is regulated through a voltage stabilizer, ensuring high reliability and durability

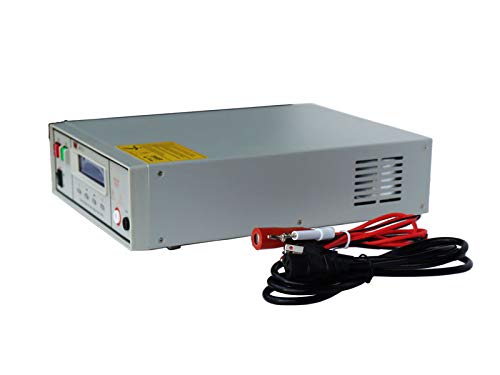

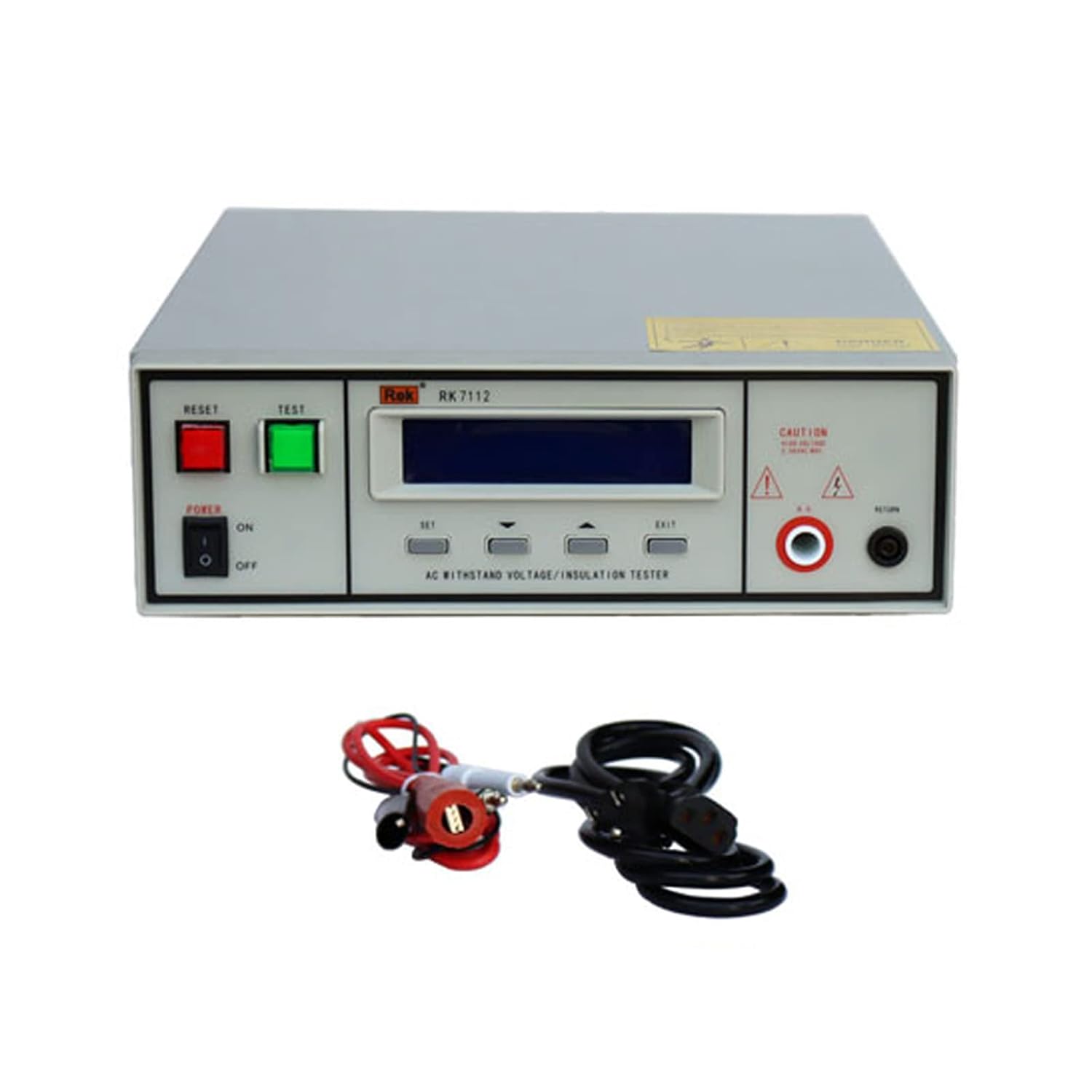

[PACKAGE INCLUDED] Complete accessories, easy to use.Item Included:1×Withstand Voltage Test Equipment; 1×High Voltage Test Line; 1×Ground Line; 1×Power Cord
[NOTING] Operating request: Environmental temperature 0~40 ℃; Relative humidity ≤ 75 %; Voltmeter:Measuring range above the 0-6000 V AC; Ammeter:Measuring range from 0-15 mA AC above; Load resistance:500 k Ω - 800 kΩ, more than 0.5 WATT
【WITHSTAND HI-POT TESTER】 This is for 5 KV AC test.The Withstand Hi-Pot Tester can be widely used for voltage withstand test in electrician’s assistant instrument,rubber-wooden facility,voltage convector,wires , power meter, motor, power supply plug, cables and all kinds of electronic and electric products
Overview
Brand : INTBUYING
Power Source : Corded Electric
Item dimensions L x W x H : 16.93 x 14.17 x 7.28 inches
